The main MEMLNaut system features the following:

  • dual core RP2350B processor with extended IO
  • stereo audio I2S codec
  • mono microphone preamp
  • stereo headphone out
  • dual mono line ins and line outs
  • MIDI in and out (with MIDI DIN connectors)
  • SD Card socket
  • reset and boot select buttons
  • 3D analogue Joystick
  • 2 3-position toggle switches
  • 2 2-way momentary toggle switches
  • a rotary encoder/switch
  • 4 analogue potentiometers
  • a 320x240 colour TFT LCD screen

GUI Elements

The displays shows a GUI which lets you access advanced features or monitor the state of the MEMLNaut.

Messages

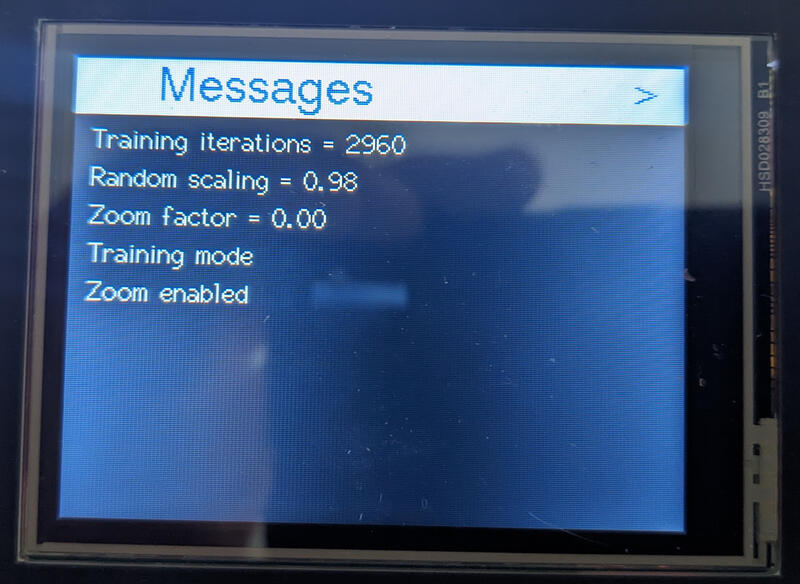

Messages from the synthesiser about training and inference

Messages screen

Save Model

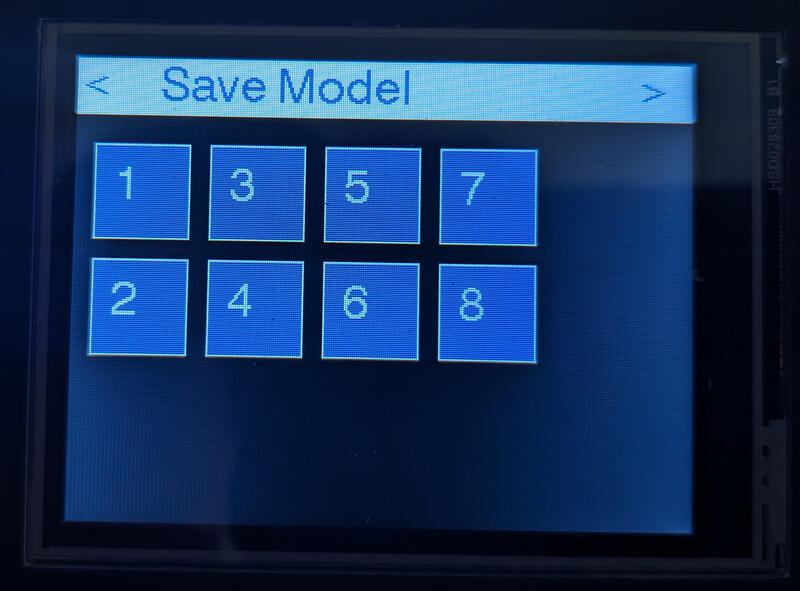

Choose a numbered slot to save the current model to. SD card required.

Save model screen

Load Model

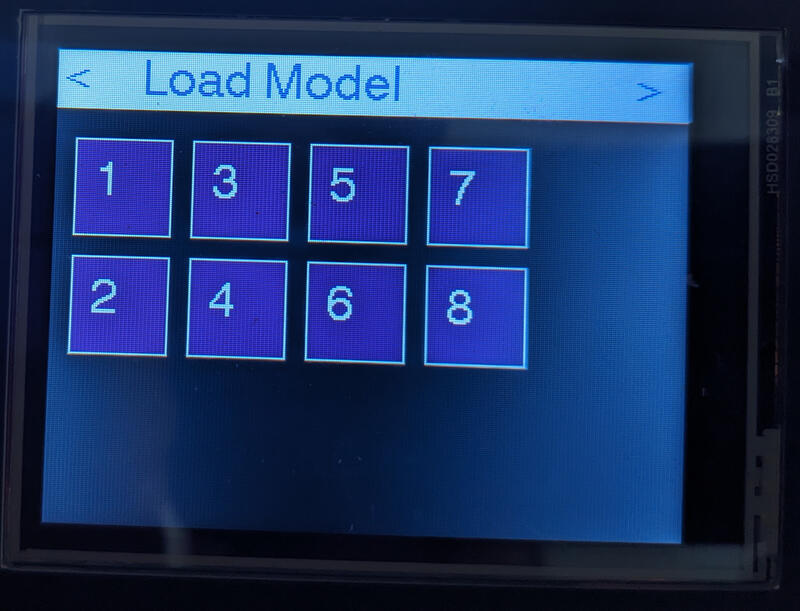

Choose a numbered slot to load a current model from. SD card required.

Load model screen

Outputs

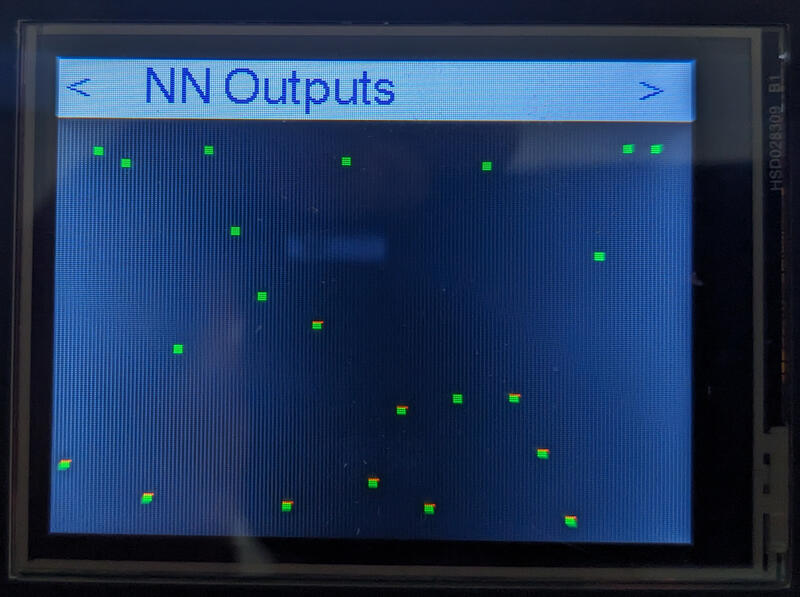

Shows the output parameters on the screen as a series of moving dots.

Outputs screen

Help

Shows a brief description of what the hardware controls do on the loaded firmware.

Help screen

System information

Shows system information (build, memory usage, etc…)

Sysinfo screen
